LG 21HK512D
21" 3MP Diagnostic Monitor

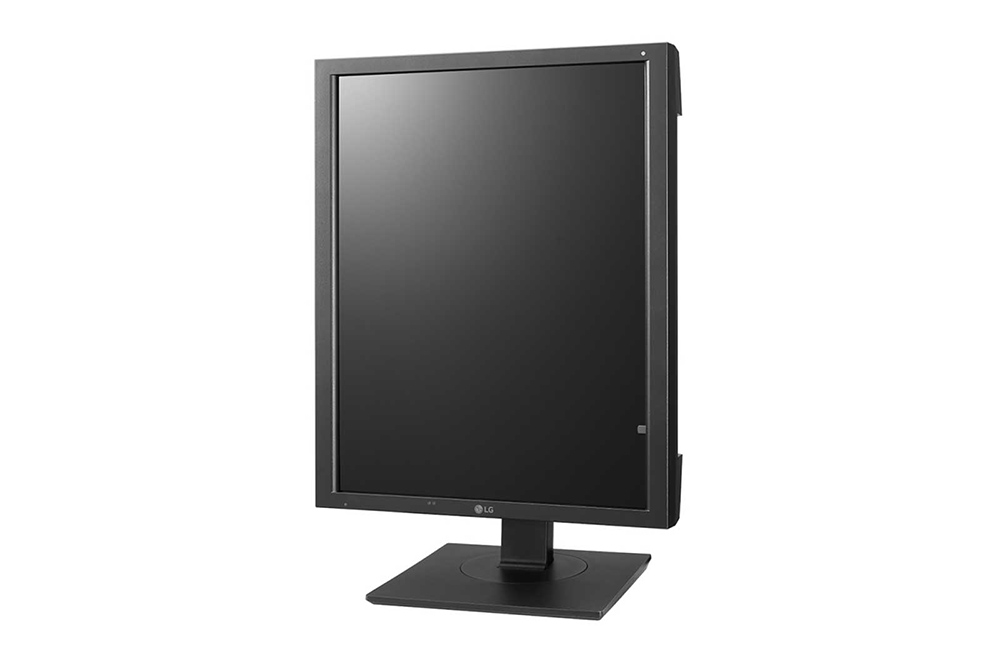

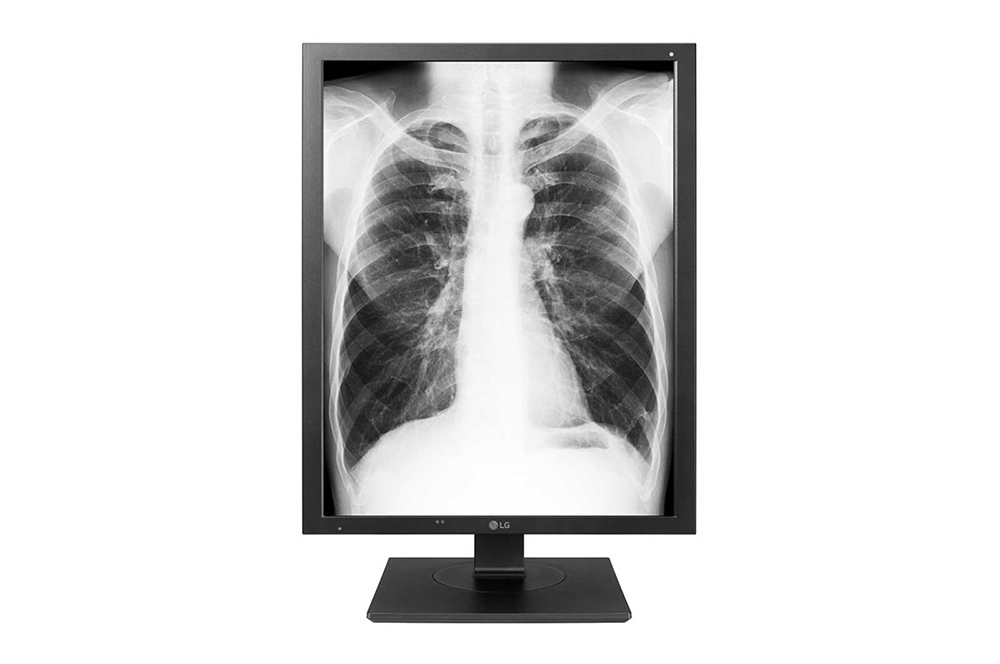

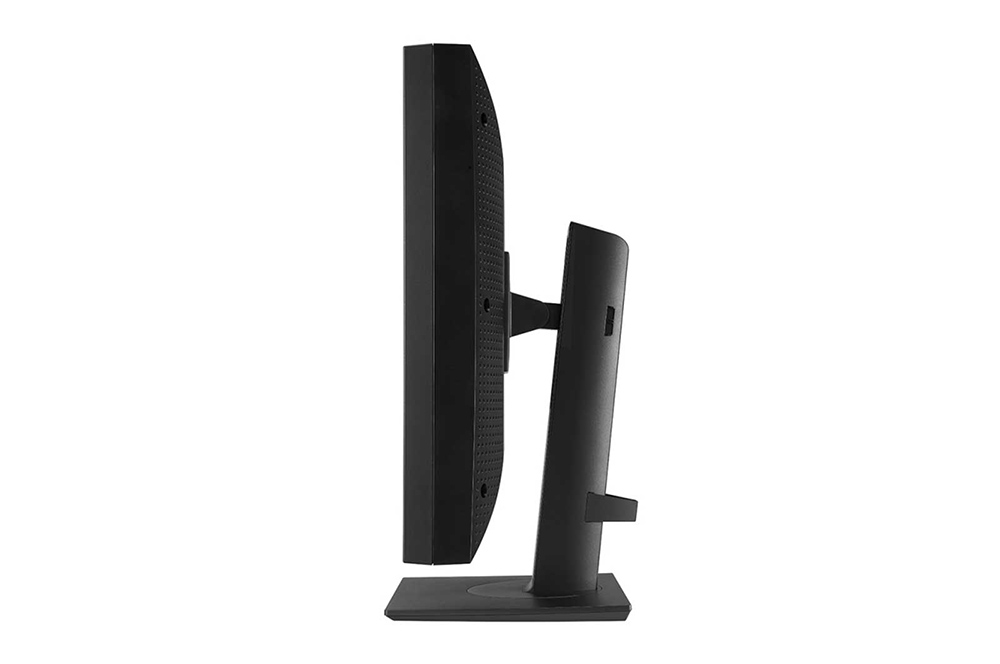

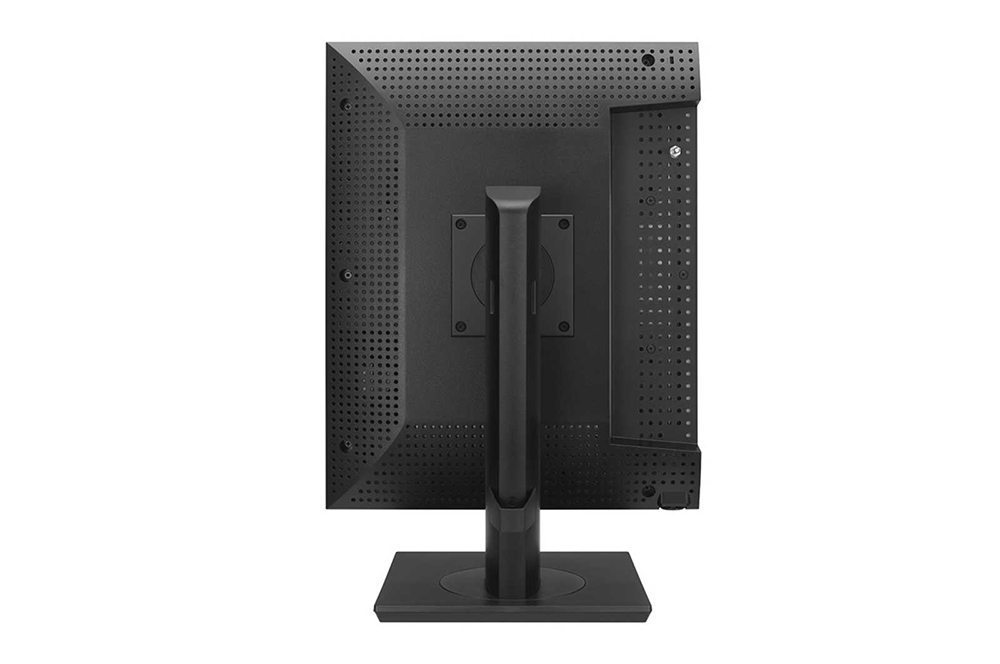

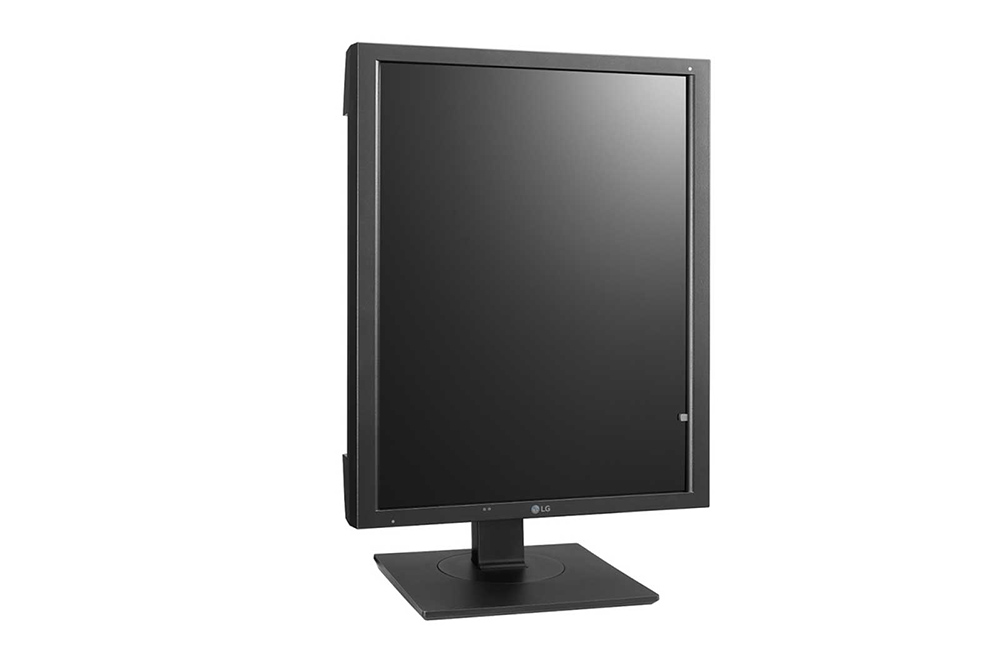

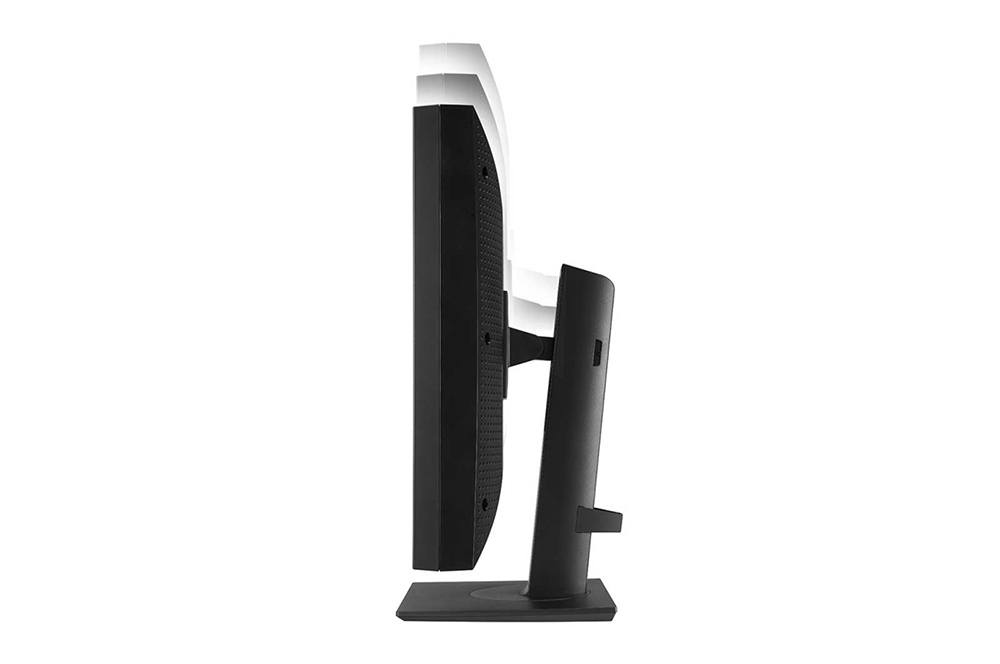

LG 21HK512D 21" Medical 3MP Diagnostic Monitor
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
3MP IPS Display & 1000nits(Typ.), 800nits(Min.) with sRGB 99%
The 21.3-inch 3MP IPS display with 1000nits(Typ.), 800nits(Min.) brightness facilitates precise diagnoses of medical images from CT and Angiography, as it allows medical professionals to easily distinguish even delicate detail. Plus, it enhances the visibility of text and illuminates obscure abnormal findings through high brightness with drastic contrast.
- 21.3” IPS 3MP
- DICOM Part 14
- Auto Luminance Sensor
- Remote & Self Calibration
- Pivot
Features:
DICOM Part 14
Stable Grayscale Images
The standard DICOM Part 14 Gamma allows for accurate
diagnostics as it adjusts the greyscale levels of medical
images received from different types of image capturing
devices. Plus, 18-bit LUT also makes enhanced, accurate
grayscale image, smoothing out the transition between LUT
values.

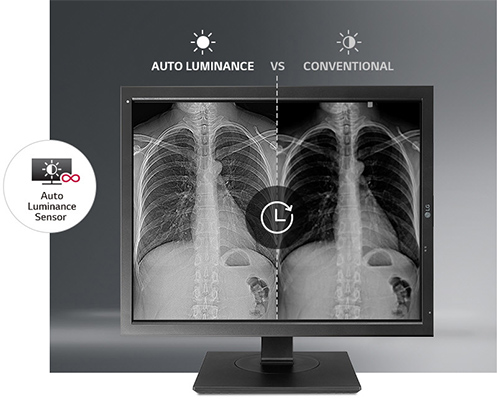

Auto Luminance Sensor
Automatic Brightness Stabilization
Auto Luminance sensor measures the backlight brightness
stability and automatically compensates for brightness
fluctuations caused by aging for a consistently stable
display during the usage life.
Remote & Self Calibration
Improved Productivity
Built-in Remote and Self Calibration helps to increase
productivity and efficiency. It converts automatically the
medical images to more suitable images to make a exact
diagnosis.

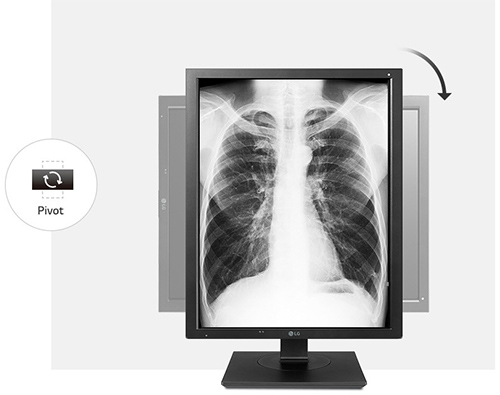

Pivot
Ergonomic Design
The Ergonomic Stand with pivot adjustment allows the user to
create an optimized diagnostic workspace without any
bothersome on-screen contents by its lower cover between two
monitors.
Specifications:
| 21HK512D Specifications | |
|---|---|
| Panel | |
| Type | IPS |
| Size | 21.3’’ (4:3) |
| Native Resolution | 2048 x 1536 |
| Pixel Pitch | 0.2115 mm x 0.2115 mm |
| Display Colors | 10bit |
| Viewing Angle | 178/178 |
| Brightness | 1000cd/m2 (Typ.), 800cd/m2 (Min.) |
| Contrast Ratio | 1400:1 (Typ.) |
| Response Time | 30ms (Typ.) |
| Video Signals | |
| Input Terminals | DVI-D/DP1.1a |
| USB | |
| Function | 1 upstream, 2 downstream |
| Standard | USB/RJ45 |
| Power | |
| Power Requirements | 100-240Vac, 50/60Hz |
| Power Consumption | 85W |
| Features | |
| Sensor | Auto Luminance Sensor, HW Calibration(Remote/Self Calibration), Front Sensor |
| Certifications & Standards | |
| Certifications & Standards | UL60601 3.1rd, CB(EN60601-1-2 4th), CB(60590), CE MDD(Class 1) , FCC-B, AAPM TG18, DIN6868-157, JESRA X-0093, IEC62563-1 |
| Accessories | |
| Supplied Accessories | Power Cord, Factory Calibration Report, Warranty Card, DVI Cable, DP Cable, CD Manual |
| Physical Specifications | |
| Dimension with Stand (W x H x D) | 553.8 X 512.9 X 240 |
| Dimension without Stand (W x H x D) | 553.8 X 333.1 X 67.6 |
| Dimension in Shiping (W x H x D) | 626 X 474 X 194 |
| Weight with Stand | 6.1kg |
| Weight without Stand | 4kg |
| Warranty | |
| Warranty | 3-Year Limited Warranty (Parts and Labor) |
