LG 55EW5TF-A
55" Transparent OLED Signage

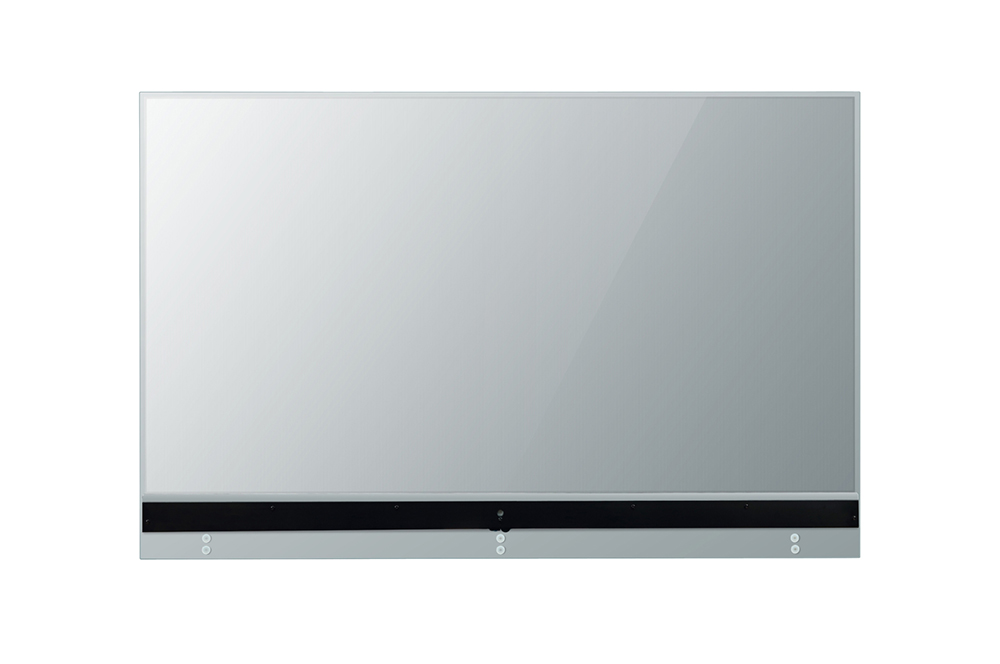

LG 55EW5TF-A 55" Transparent OLED Signage
55" OLED, 1920 x 1080 (FHD), 400 Nit, 1080p, HDMI, DP, USB , RS232C In/out, RJ45, 3-Year Warranty
#55EW5TF-A
Our Price:
Request a Quote
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
A New Dimension to Digital Signage
LG Transparent OLED signage illuminates spaces that once were hidden away behind the display, completely harmonizing with its surroundings. Boasting vivid and clear colors with high transparency, this display provides valuable information about as well as visual enhancements to objects placed behind it, giving viewers an impressive “wow” factor.
- Size: 55"
- Brightness(Typ.): 400 cd/m² (APL 25%, without Glass)
- Transparency(Typ.) : 38% (Panel)
- Bezel : 7.9 mm (T/B/L), 121.7 mm (B)
- Interface : HDMI/DP/USB(2)/ RS232C/ RJ45/ Audio/ IR
- IEC 61373 Standard Verified
Features:
A New Level of See-through View
LG Transparent OLED signage illuminates spaces that once were hidden away behind the display, completely harmonizing with its surroundings.
Unrivaled Picture Quality
LG’s OLED technology, featuring self-lighting pixels, maintains accurate and vivid colors even when the display becomes transparent. It brings content to life, making it difficult for people to separate content from the real objects placed behind the screen.
High Transparency
Thanks to its high transparency (38％), much higher than conventional LCD transparent displays, LG Transparent OLED signage blends into its surroundings seamlessly and naturally. The display’s see-through view turns places where it is installed into open and interactive spaces.
Customizable and Expandable Design
LG Transparent OLED signage is designed as a semi-assembled
display, meaning you can install it in various ways to fit into
existing structures and spaces. There is no limit to the
applications of Transparent OLED signage, and it can complement
any venue in which it is installed.
* Installation accessories are not supplied by LG.
See Through
Effective Information Delivery
While clearly showing objects behind the screen, LG
Transparent OLED signage overlays information right over
them so that viewers can easily see both the object and the
relevant information without having to change their view.
Visual Feast
AR Effects in the Dark
Using LG transparent OLED signage, you can surprise viewers
with AR effects in the dark. The content displayed seems
life-like, adding another "wow" factor to the viewing
experience.
Product Durability
Robust Design for Safety
The tempered front glass protects the screen from external impact,
and its verified safety design means it is reliable enough to
endure shock and vibration caused by the surrounding environment,
such as moving trains.
Specifications:
| 55EW5TF-A Specifications | ||
|---|---|---|
|
PANEL |
Screen Size |
55" |
|
Panel Technology |
Transparent OLED Touchscreen |
|
|
Aspect Ratio |
16 : 9 |
|
|
Native Resolution |
1,920 x 1,080 (FHD) |
|
|
Refresh Rate |
120 Hz |
|
|
Brightness (Typ.) |
400 / 150 nits (APL 25 % / 100 %, Without Glass) |
|
|
Contrast Ratio |
150,000 : 1 |
|
|
Color gamut |
120% BT709 |
|
|
Viewing Angle (H x V) |
178° x 178° |
|
|
Color Depth |
10 bit (R), 1.07 Billion Colors |
|
|
Response Time |
1 ms (G to G) |
|
|
Lifetime (Typ.) |
30,000 Hrs |
|
|
Operation Hours (Hours / Day) |
18 / 7 (Moving Content Only) |
|
|
Portrait / Landscape |
Yes / Yes |
|
|
Transparency (Typ.) |
33% (Set) |
|
|
CONNECTIVITY |
Input |
HDMI, DP, USB 2.0 Type A, USB 2.0 Type A (Touch Control Board only) |
|
Output |
DP, Audio, USB 2.0 Type B (Touch USB) |
|
|
External Control |
RS232C In/Out, RJ45 (LAN) In/Out, IR In (External IR Receiver) |
|
|
MECHANICAL SPECIFICATION |
Bezel Color |
Matte Silver |
|
Bezel Width |
7.9 / 7.9 / 7.9 / 144.5 mm (T / R / L / B) |
|
|
Weight (Head) |
32.2 lbs / 14.6 kg (Head) 7.5 lbs / 3.4 kg (Signage Box) |
|
|
Packed Weight |
50.9 lbs / 23.1 kg |
|
|
Monitor Dimensions (W x H x D) |
48.2" x 32.8" x 0.3" / 1,225.5 x 832.9 x 7.0 mm (Head) 30.8" x 9.4" x 1.4" / 782.8 x 238.4 x 34.7 mm (Signage Box) |
|
|
Carton Dimensions (W x H x D) |
53" x 32.7" x 8.4" / 1,345 x 945 x 207 mm |
|
|
Protection Glass |
Depth 3.0 mm , Tempered / Chemical Strengthening, Anti-Reflective, Shatter-Proof |
|
|
KEY FEATURES |
Internal Memory (16GB), Temperature Sensor, Local Contents Scheduling, Group Manager, USB Plug & Play, Fail Over, Screen Rotation, Setting Data Cloning, SNMP, ISM Method (Image Sticking Minimization), Auto Set ID, Status Mailing, Control Manager, Crestron Connected®1, DPM, PM Mode, Wake on LAN, HDMI-CEC2 , SI Server Setting |
|
|
ENVIRONMENT CONDITIONS |
Operation Temperature Range |
32° F to 104° F / 0° C to 40° C |
|
Operation Humidity Range |
10% to 80% |
|
|
POWER |
Power Supply |
100-240 Vac, 50/60 Hz |
|
Power Type |
Built-In Power |
|
|
Power Consumption (Typ. / Max.) |
250 W / 280 W |
|
|
CERTIFICATION |
Safety |
CB, NRTL |
|
EMC |
FCC Class "A" / CE / KC |
|
|
ErP / Energy Star |
Yes (EU Only) / No |
|
|
SOFTWARE & SERVICES3 |
Content Management Software |
SuperSign CMS |
|
Control and Monitoring Software |
SuperSign Control / Control+ |
|
|
Signage365Care |
Yes |
|
|
ACCESSORIES (BASIC) |
Remote Controller, Power Cord, IR Receiver, Phone to RS232C Gender, FFC Cables (1,600 mm x 4 ea), HDMI Cable (3 m), Micro to A Type USB Cable (1.8 m), A to B Type USB Cable, Tapes, Screws, Shield Cover Assy', Rubber Dampers, Touch Cable Holders, QSG, Regulation Book |
|
|
TOUCH |
Touch Type |
P-Cap |
|
Operating System Support |
Windows |
|
|
Multi Touch Point |
Max 10 Points |
|
Views:
Documentation:
Download the LG Transparent OLED Signage - 55EW5TF-A Datasheet (.PDF)
