LG LAA015F
130" All-in-one DVLED LAAF Series Signage
LG LAA015F- 130" All-in-one DVLED LAAF Series Signage
130" Display, 1920x1080 (FHD), 500 Nit, DVLED Standard 1.5mm pitch FHD Bundle (includes 5% spare parts), Black, 2-Year Warranty#LAA015F130
Our Price: Request a Quote
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
The New Standard for Optimal Visual Meetings
The LG 130" All-in-one LED Screen features a 130-inch large screen with no bezel. With superb picture quality powered by HDR10 Pro and immersive Surface Sound, attendees can get more focused and deeply engaged for more productive meetings.
- Screen Size: 130"
- Pixel Pitch: 1.5mm
- Brightness: 500 cd/m2
- HDR10 Pro / Surface Sound
- Embedded System Controller
Features:
Lead Smarter Meetings with Increased Engagement
The display serves the most important and essential role in the meeting room by presenting discussion content from simple text to high-quality video and sound. The picture quality and performance of the display affects the quality of meetings and even the outcome of discussions at times
LG's 130" All-in-one LED Screen is an ideal display for building hassle-free and smart meeting room environments. Its large size of 130 inches and superb picture quality supported by HDR10 Pro presents accurate and vivid colors to viewers, while fully captivating them with Surface Sound driven by 36 embedded sound units.
Vivid Color Expression Powered by HDR10
With HDR10 Pro*support, content becomes more vivid and has greater visual impact. The wider color spectrum and greater contrast ratio allows viewers to fully enjoy content as it appears in real life.
*HDR10 Pro is LG's own HDR solution to process HDR signal by using enhanced dynamic tone mapping.
130" Large Screen with No Bezel
The greatest advantage of LG's LED screen is the 130-inch large-sized screen with no bezel. Even bigger than four 55-inch conventional LCD displays combined, it displays content without lines or distortions and provides a more immersive visual experience.
Immersive Surface Sound
The 130" All-in-one LED Screen doesn't require any additional speakers for its impactful audio effect. Its embedded Surface Sound comes from the entire screen with 162W (4.5W x 36points) and is able to reach all meeting attendees, including people seated far from the screen.
Easy Installation for User Convenience
Easy Remote Control Support
The 130" All-in-one LED Screen allows the user to easily access the settings, such as picture mode, volume, etc. using a remote control instead of needing to connect to a PC. It uses the same UI as general LG digital signages, so users can easily learn how to use it.

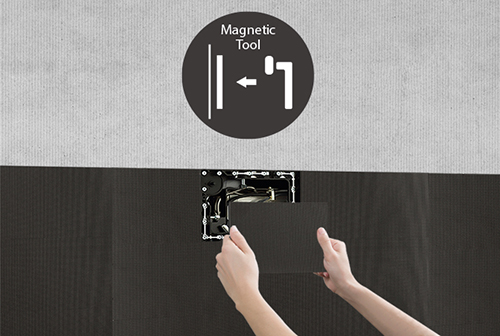

Front Serviceability
The LED screen can be easily installed and managed from the front side for easy operation. Its LED modules can also be simply attached or detached by hand or with a magnetic tool.*
*Magnetic tool is not included.
Auto Configuration
LG's 130" All-in-one LED Screen is composed of one master unit case and eight slave unit cases. Each unit case automatically recognizes its location and setting values, so the screen doesn't require any complicated screen setup process. All you need to do is turn on the screen.
High Compatibility for Meeting Room
Compatibility with AV Control Systems
The LED screen has been certified Crestron Connected® for a higher level of compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
* Network-based control
Compatibility with LG Software Solutions
SuperSign Solution®
The LED screen is compatible with LG SuperSign CMS, which is a comprehensive software solution for integrated content management. This makes content creation and distribution much easier, helping your business save time and operate more effectively across its locations.
Signage365Care
Maintenance is easier and faster with the optional Signage365Care service, a cloud service solution provided by LG service. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.
Installation Options for Various Environments
The 130" All-in-one LED Screen can be installed in various setups, depending on its environment.*
* Mounting accessories (wall mount, stand, etc.) are not included with LG products.
Specifications:
| LAAF Series Specifications | |
|---|---|
| Physical Parameters | |
| Pixel Configuration | 3 in 1 SMD |
| Screen Resolution (WxH) | 1,920x1,080 |
| Screen Weight (kg) | 175 |
| Unit Case Resolution (WxH) | 640x360 |
| Unit Case Surface Area (m2) | 0.518 |
| Weight per Square Meter (kg/m2) | 37.6 |
| Flatness of Unit Case (mm) | ±0.2 |
| Service Access | Front and Rear |
| Pixel Pitch(mm) | 1.50 |
| Screen Dimensions (WxH, mm) | 2,880x1,620x128.5 |
| No. of Modules per Unit Case (WxH) | 4x3 |
| Unit Case Dimensions (W x H x D, mm) | 960x540x128.5 |
| Weight per Unit Case (kg/unit) | Master: 20.85, Slave: 19.24 |
| Physical Pixel Density (pixels/m2) | 444,444 |
| Unit Case Material | Front : Die Casting Aluminum, Rear : PC+ABS |
| Optical Specifications | |
| Min. Brightness (After Calibration) | 500 cd/m2 |
| Color Temperature | 6,500 |
| Visual Viewing Angle (Horizontal) | 160 |
| Visual Viewing Angle (Vertical) | 140 |
| Brightness Uniformity | 95% |
| Color Uniformity | ±0.015Cx,Cy |
| Contrast Ratio | 5,000 |
| Processing Depth (bit) | 16 (HDR10, HDR10 Pro1) |
| Electrical Specifications | |
| Power Consumption (W/unit, Avg.) | 1,765 |
| Power Consumption (W/unit, Max.) | 3,530 |
| Power Consumption (W/m2, Max.) | 760 |
| Power Supply (V) | 100 to 240 |
| Frame Rate (Hz) | 50 / 60 |
| Refresh Rate (Hz) | 3,840 |
| Operation Specifications | |
| Lifetime (Half brightness, hrs)2 | 100,000 |
| Operating Temperature | 0℃ to 40℃ |
| Operating Humidity | 10-80% RH |
| Connectivity (Embedded Controller) | |
| Video Inputs | HDMI In(3), DP In, USB |
| Control | RJ45 In, RS232C In/out |
| Special Features | Temperature Sensor, IR & Ambient Light Sensor, Audio Out, Crestron Connected3) |
| Standard (Certification) | |
| Safety | IEC 60950-1 / EN 60950-1 / UL 60950-1 |
| EMC | FCC Class A / CE / KC |
| Environment | RoHS |
| Software | |
| Platform | webOS 4.0 |
| Support | Signage365Care4, SuperSign CMS |
| Accessory | |
| Basic Accessory | Data Cable, LAN Cable, Power Cord, RS232C Gender (9pin to Phone Jack), Remote Controller, IR Receiver, Manual |
- HDR10 Pro is LG's own HDR solution to process HDR signal by using enhanced dynamic tone mapping.
- The Lifetime(Half brightness) spec is subject to LED package spec.
- Network based control
- The availability differs by region
