LG 49XS4F
49" Full HD High Brightness Window Facing Indoor Digital
Display
LG 49XS4F-B 49" XS4F Series High Brightness Outdoor Digital Display
49" Display, 1920 x 1080 (FHD), 4000 nit, HDMI(2), Display Port, DVI-D, Black, 3-Year Limited Warranty
#49XS4F-B
Our Price:
Request a Quote
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
Outstanding Visibility with Extreme Brightness
LG’s XS4F series of window-facing digital signage captivates customers with their bright and vivid image quality. The XS 4F series helps businesses enhance their brand image while making customers’ shopping experience more enjoyable.
- Size: 49"
- Brightness: 4,000 nits (Typ.)
- Lifetime: 50,000 Hours (approx.)
- Bezel Width: 12.0 mm (T/B), 9.9 mm (L/R)
- Depth: 85.4 mm
- Interface: HDMI(2) / DP / DVI-D / RJ45 / IR / RS232C / USB / External Speaker Out (L/R)
Features:
Outstanding Visibility
High Brightness
With a great brightness of 4,000 nits, the XS4F series
clearly delivers contents and attracts public attention,
which is the ultimate display for outdoor visibility.

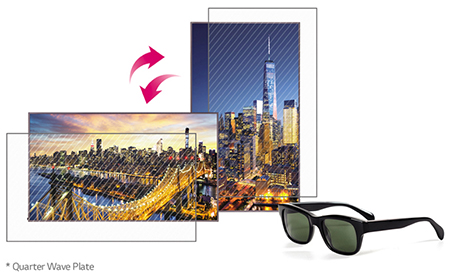

Visible with Polarized Sunglasses
Quarter-wave Plate technology enables clear visibility even
when the viewer is wearing polarized sunglasses.
High Performance & Reliability
Slim Bezel
The XS4F series attracts attention with elegant design,
featuring a slim bezel. These displays enhance the visual
impact of important content and the retail store’s
overall atmosphere.
Smart Brightness Control
The screen brightness is automatically adjusted depending on
the ambient light. The brightness is increased in light for
better visibility, while it is decreased in darkness for
efficient power management.
Wide Operating Temperature Range
This panel offers superb reliability in a wide range of
operating temperatures.
Conformal Coating
Conformal Coating improves the long-term reliability of the
main board and power board, protecting them from dust, iron
powder, humidity, etc.

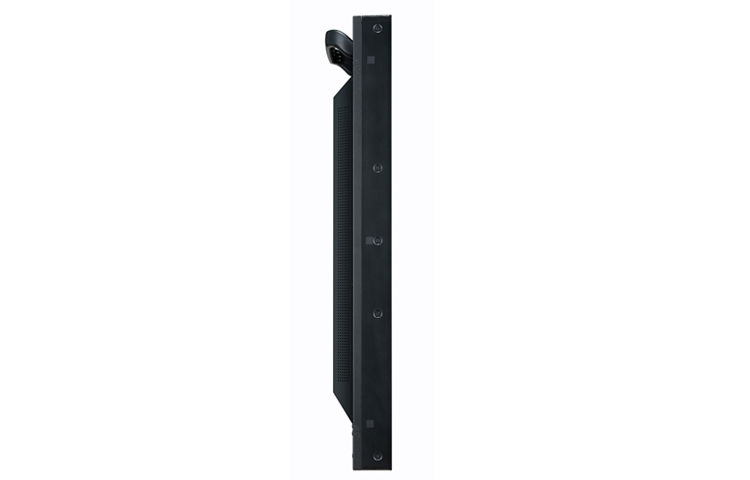

Space Efficiency
Thanks to its thin depth, the XS series takes up minimal
space, which leads to space efficiency in an in-window
environment.

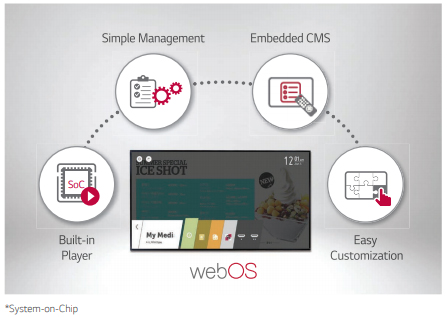

webOS Smart Platform
Quad Core SoC* can execute several tasks at the same time
without a separate media player. In addition, webOS 3.0
platform enhances user convenience with intuitive UI and
simple app develoment tools.
Specifications:
| 49XS4F Specifications | |
|---|---|
| Panel | |
| Screen Size | 49" class (48.5" diagonal) |
| Panel Technology | IPS, M+ (WRGB) |
| Aspect Ratio | 16 : 9 |
| Native Resolution | 1920 x 1080 (FHD) |
| Brightness | 4,000 nits (Typ.), 3,200 nits (Min.) |
| Contrast Ratio | 1,000:1 |
| Viewing Angle (H x V) | 178 x 178 |
| Surface Treatment | Haze 3%, QWP |
| Lifetime | 50,000 Hours |
| Operating Hour | 24 Hours |
| Orientation | Landscape & Portrait |
| Connectivity | |
| Input | HDMI (2), DP, DVI-D, Audio, USB |
| Output | DP, Externel Speaker (L/R) |
| External Control | RS232C In/out, RJ45 In, IR Receiver In |
| Physical Specification | |
| Bezel Color | Black |
| Bezel Width | 9 mm (T/B), 6.5 mm (L/R) |
| Monitor Dimension (W x H x D) | 43” x 24.7” x 3.3” / 1,092.7 x 626.4 x 83.5 mm |
| Weight (Head) | 55.1 lbs / 25.0 kg |
| Carton Dimensions (W x H x D) | 47” x 6.9” x 29.9” / 1,194 x 175 x 760 mm |
| Packed Weight | 55.1 lbs / 25.0 kg |
| Handle | Yes (2ea) |
| VESA Standard Mount Interface | 600 x 400 mm |
| Special Features | |
| Special Features | Temperature Sensor, Auto Brightness Sensor, Energy Saving, Smart Energy Saving, Tile Mode (Up to 15x15), Natural Mode@Tile Mode, Source Selection, Brightness/Contrast/Backlight, DPM Select, File Play with USB, Internal Memory, Wi-Fi Dongle Ready |
| Environmental Conditions | |
| Operating Temperature Range1 | 32°F to 104°F / 0°C to 40°C |
| Operating Humidity Range | 10 % to 80 % |
| Power | |
| Power Supply | 100-240V~, 50/60Hz |
| Power Type | Built-In Power |
| Max Power Consumption | 370 W |
| Typical Power Consumption | 345 W |
| Smart Energy Saving | 135 W |
| Standard (Certification) | |
| Safety | IEC 60950-1 / EN 60950-1 / UL 60950-1 |
| EMC | FCC Class "A" / CE / KC / VCCI |
| Software Compatibility | |
| Content Management Software | SuperSign CMS |
| Control and Monitoring Software | SuperSign Control+ |
| Accessory | |
| Basic | Remote Control, Power Cord, HDMI Cable, Manual (ESG/EIG), IR Receiver (w/ Ambient Light Sensor) |
| Optional | Landscape Wall Mount (WM-L640V), Portrait Wall Mount (WM-P640V), Wi-Fi Adapter (AN-WF500) |
| Warranty | |
| Warranty | 3-Year Limited Warranty (Parts and Labor) | Extended Warranties Available |
Views:
Documentation:
Download the LG Outdoor Signage - XS4F Series Datasheet (.PDF)
