LG 55XF3E-B
55" Open Frame Outdoor Signage

LG 55XF3E-B

LG 55" Open Frame Outdoor Signage

#55XF3E-B
Our Price: Request a Quote

Get a Quote

Overview:

LG Open Frame Outdoor Signage

Brightness : 3,000 cd/m² (Typ.)
Life Time : 50,000 hours
Bezel : 9.9 mm (L/R), 12 mm (T/B)
Depth : 106.8mm
Interface: HDMI(2) / DP / DVI-D / RJ45 / RS232C / USB / External speaker out (L/R)

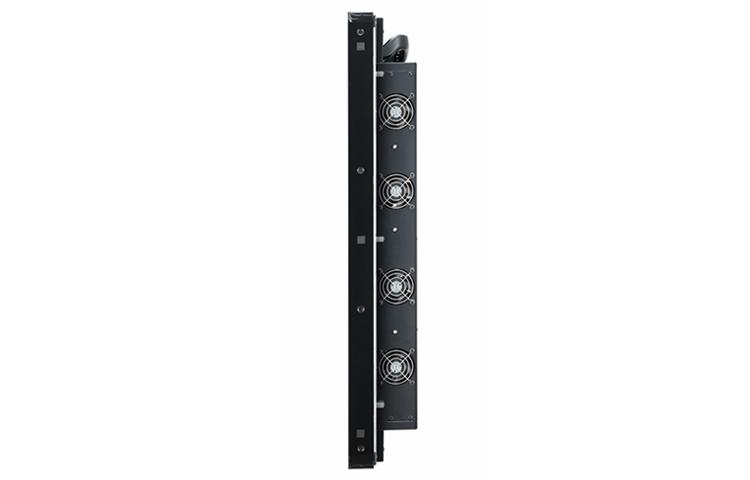

Slim & Robust Design with Outstanding Visibility

With a slim & robust design, XF3E-B series can be easily installed to meet the customer's needs in external environments that require complex installation conditions. And upgraded brightness captures the attention of customers even under strong and direct sunlight.

LG Open Frame Outdoor Signage

Features:

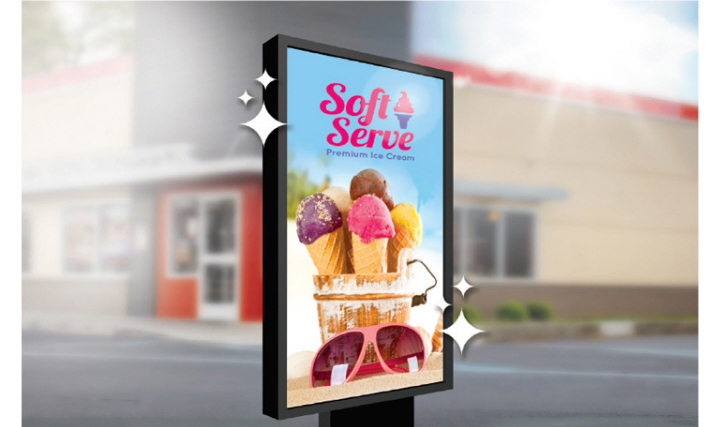

Bright & Brilliant

With a great brightness of 3,000 cd/m², XF series clearly deliver contents and attract public attention, which is the ultimate display for outdoor visibility.

Bright & Brilliant

Visible with Polarized Sunglasses

Quarter Wave Plate enables clear visibility even when the viewer is wearing polarized sunglasses.

Visible with Polarized Sunglasses

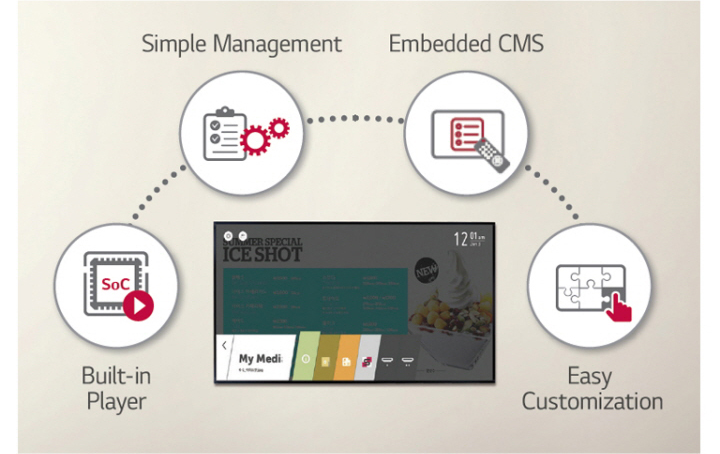

High-Performance with webOS Smart Platform

Quad Core SoC* can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app develoment tools.

High-Performance with webOS Smart Platform

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.

Smart Brightness Control

Long Lasting Brightness

By adding more LED units, XE4F operates brighter at a lower temperature, thereby lasting longer than conventional products.

Long Lasting Brightness

Conformal Coating

The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on every major circuit board eliminates such troubles by protecting it against dust, iron powder, humidity, etc

Conformal Coating

Specifications:

55XF3E-B Specifications
PANEL	Screen Size	55" (54.64" Measured Diagonal)
Panel Technology	IPS, M+ (WRGB)
Aspect Ratio	16:9
Native Resolution	1,920 x 1,080 (FHD)
Brightness	3,000 nits (Typ.)
Contrast Ratio (Typ.)	1,000:1
Viewing Angle (H x V)	178^o x 178^o
Color Depth	16.7 Million
Surface Treatment	AGLR (Haze 3%), QWP
Lifetime	50,000 Hrs
Operation Hours	24 Hrs
Orientation	Landscape & Portrait
CONNECTIVITY	Input	HDMI (2), DP, DVI-D, Audio, USB
Output	DP, External Speaker
External Control	RS232C In/Out RJ45 In, IR in
PHYSICAL SPECIFICATION	Bezel Color	Black
Bezel Width	12 mm (T/B), 9.9 mm (L/R)
Monitor Dimension (W x H x D)	1,235.5 x 709.4 x 106.8 mm, 48.6" x 27.9" x 4.2"
Weight (Head)	26.5 kg, 58.4 lbs
Carton Dimensions (W x H x D)	1,344 x 236 x 820 mm, 52.9" x 9.3" x 32.3"
Packed Weight	32.25 kg, 71.1 lbs
VESA^TM Standard Mount Interface	600 x 400 mm
ENVIRONMENT CONDITIONS	Operation Temperature¹	0°C to 50°C, 32°F to 122°F
Operation Humidity	10% to 80%
POWER	Power Supply	Built-In Power
Power Type	100-240 V, 50/60 Hz
Power Consumption	Typ./Max	250 W / 300 W
Smart Energy Saving	120 W
SOUND	Speaker		20 W (10 W x 2) for External Speaker
STANDARD (CERTIFICATION)	Safety	IEC 60950-1 / EN 60950-1 / UL 60950-1
EMC	FCC Class "A" / CE / KC
SOFTWARE COMPATIBILITY	Content Management Software	SuperSign CMS
Control and Monitoring Software²	SuperSign Control+
ACCESSORIES	Basic	Remote Controller (2 Batteries Included), Power Cord, IR Extension Kit, HDMI Cable, Manual (ESG&EIG)
Optional	Wi-Fi Dongle (AN-WF500) * Stand is not available
OTHER	Warranty	3 Year Conditional Limited 3 Year Limited
UPC	7 19192 61900 5

55XF3E-B Specifications

PANEL

Screen Size

55" (54.64" Measured Diagonal)

Panel Technology

IPS, M+ (WRGB)

Aspect Ratio

16:9

Native Resolution

1,920 x 1,080 (FHD)

Brightness

3,000 nits (Typ.)

Contrast Ratio (Typ.)

1,000:1

Viewing Angle (H x V)

178^o x 178^o

Color Depth

16.7 Million

Surface Treatment

AGLR (Haze 3%), QWP

Lifetime

50,000 Hrs

Operation Hours

24 Hrs

Orientation

Landscape & Portrait

CONNECTIVITY

Input

HDMI (2), DP, DVI-D, Audio, USB

Output

DP, External Speaker

External Control

RS232C In/Out RJ45 In, IR in

PHYSICAL SPECIFICATION

Bezel Color

Black

Bezel Width

12 mm (T/B), 9.9 mm (L/R)

Monitor Dimension (W x H x D)

1,235.5 x 709.4 x 106.8 mm, 48.6" x 27.9" x 4.2"

Weight (Head)

26.5 kg, 58.4 lbs

Carton Dimensions (W x H x D)

1,344 x 236 x 820 mm, 52.9" x 9.3" x 32.3"

Packed Weight

32.25 kg, 71.1 lbs

VESA^TM Standard Mount

Interface

600 x 400 mm

ENVIRONMENT CONDITIONS

Operation Temperature¹

0°C to 50°C, 32°F to 122°F

Operation Humidity

10% to 80%

POWER

Power Supply

Built-In Power

Power Type

100-240 V, 50/60 Hz

Power Consumption

Typ./Max

250 W / 300 W

Smart Energy

Saving

120 W

SOUND

Speaker

20 W (10 W x 2) for External Speaker

STANDARD (CERTIFICATION)

Safety

IEC 60950-1 / EN 60950-1 / UL 60950-1

EMC

FCC Class "A" / CE / KC

SOFTWARE COMPATIBILITY

Content Management

Software

SuperSign CMS

Control and Monitoring

Software²

SuperSign Control+

ACCESSORIES

Basic

Remote Controller (2 Batteries Included), Power Cord,

IR Extension Kit, HDMI Cable, Manual (ESG&EIG)

Optional

Wi-Fi Dongle (AN-WF500)

* Stand is not available

OTHER

Warranty

3 Year Conditional Limited 3 Year Limited

UPC

7 19192 61900 5
