LG 49UH7F-H
49" Ultra HD Slim Indoor Digital Display with 700 nits
brightness and LG webOS Smart Signage Platform
LG 49" Ultra HD Slim Indoor Digital Display
49" Display, 3840 x 2160 (UHD), Edge LED, 700 Nits, HDMI (2), USB, RS232C , RJ45 (RGB Panel), Black, 3-Year Warranty
#49UH7F-H
Our Price:
Request a Quote
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
LG UHD Signage Provides Information Effectively
The UH7F-H series is a UHD signage that has been optimized for various indoor environments. It features bright, 700-nit UHD quality, slim design, external dust protection, and both portrait and landscape operation for flexible applications and installations.
- Brightness(Typ.) : 700 cd/m²
- Surface Treatment (Haze) : 28%
- Bezel : 9.9 mm (T/R/L), 14.4 mm (B)
- Depth : 39.9 mm
- Interface : HDMI(3)/ DP/ DVI-D/ USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
- Built-in Speaker
Features:
Superior Picture Quality
ULTRA HD Resolution
With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents..
Narrow Bezel & Slim Depth
This series is thin in bezel size and thickness, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.
Sleek and Practical Design
Detachable Logo and Built-in Speaker
This series is equipped with a new transparent logo which is well organized with surroundings. Also, its removable feature gives users flexibility for installation. Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.
IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.
Product Reliability
30° Tilting Installation
For the user's comfort viewing, UH7F-H supports the installation with 30 degrees of tilt* when it is installed at high places.

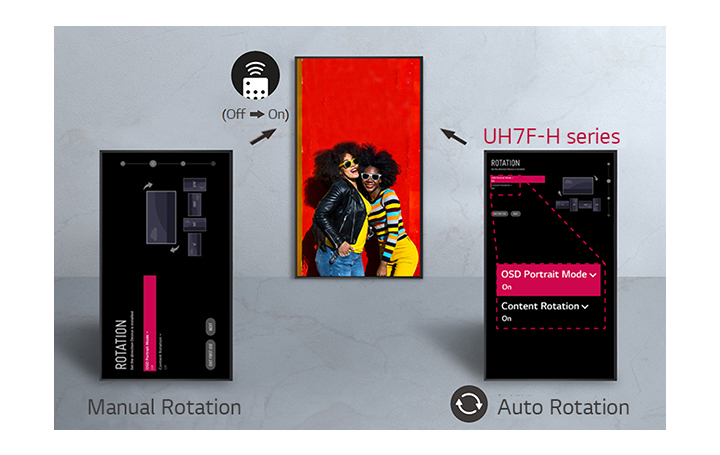

Auto Screen Rotation
This series automatically detects its orientation (landscape or portrait mode) in the initial installation step, so manual rotation set-up process isn't required. The direction of OSD and background contents will be already set when you turn on a display at first.
Specifications:
49UH7F-H Specifications | |
---|---|
Panel | |
Screen Size | 49" |
Panel Technology | IPS |
Aspect Ratio | 16 : 9 |
Native Resolution | 3,840 x 2,160 (UHD) |
Brightness | 700 cd/m² |
Contrast Ratio | 1,000:1 |
Viewing Angle (H x V) | 178 x 178 |
Response Time | 8ms (G to G) |
Life Time (Min.) | 50,000 hours |
Operating Hour | 24 Hours |
Orientation | Landscape & Portrait |
Connectivity | |
Input | HDMI (2, HDCP 2.2/1.4), HDMI (1, HDCP 1.4), DP (1, HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio, USB 2.0 Type A |
Output | DP, Audio |
External Control | RS232C (4 Pin Phone Jack) In / Out, RJ45(LAN) In, IR In |
Physical Specification | |
Bezel Color | Black |
Bezel Width | 9.9mm (T/R/L), 14.4mm (B) |
Dimension (W x H x D) | 43.3" x 25.4" x 1.6" / 1,098.6mm x 644.5mm x 39.9mm |
Weight | 34 lbs / 15.4 kg |
VESA Standard Mount Interface | 300 mm x 300 mm |
Special Features | |
Special Features | Internal Memory 8GB (System 4GB + Available 3.6GB), Built-in Wi-Fi, Built-in Speaker, Temperature Sensor, Auto Brightness Sensor, Acceleration Sensor, Local Key Operation, Embedded CMS (USB Auto Playback, Local Contents Scheduling, Group Manager), Fail over, Image Customization (Booting Logo, No Signal), Content Sync (RS232C, Local Network), PIP/PBP(4), Screen Share, Video Tag(4), Play via URL, OSD Rotation, Tile Mode Setting (Max. 15 x 15), Setting Data Cloning, Firmware Update by Network, SNMP 2.0, ISM Mode, Crestron Connected®1), DPM, Smart Energy Saving, Wake on LAN, Beacon, HDMI-CEC2), SI Server Setting |
Tilt (Facedown) | Max. 30° |
IP Rating | IP5x |
Environmental Conditions | |
Operating Temperature Range | 32° F to 104° F / 0°C to 40°C |
Operating Humidity Range | 10 % to 80 % |
Warranty | |
Warranty | 3 Year Limited Warranty |
Documentation:
Download the LG Ultra HD Signage - UH7F-H Series Datasheet (.PDF)
