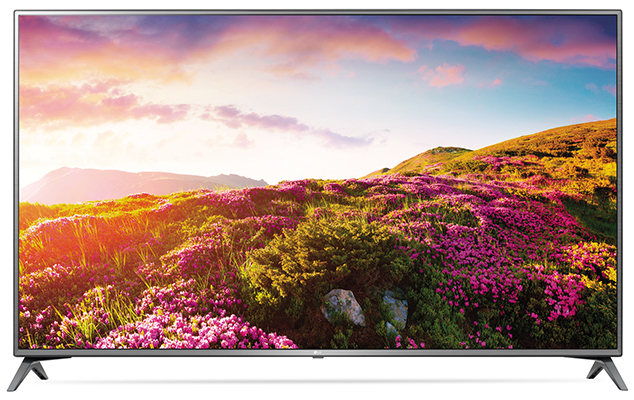

LG 75UV340C
75" Class UHD Commercial TV with Essential Smart Function
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
LG's latest Public Display TV, the UV340C supports UHD/4K resolution to provide optimal viewing in diverse business environments. With enhanced management functions including WOL (Wake On LAN), SNMP (Simple Network Management Protocol), and SuperSignTM Link, managers can increase management efficiency while the edge-lit LED display and UHD picture quality improve the digital viewing experience.
- Size: 75"
- Ultra HD
- WOL and SNMP
- Crestron Connected Certified Display
- DPM (Display Power Management)
Features:
Ultra HD TV
4K Upscaler
Enjoy Full HD content in Ultra HD quality. The 4K Upscaler
automatically upgrades Full HD content to Ultra HD through
the six steps of the upscaling processes.
4K IPS Wide Viewing Angle
One of the secret behind LG TVs outstanding viewing
experience is the specially designed TV panel. 4K IPS
delivers true colour from any angle with 4 times the
resolution of Full HD. With 4K IPS, every seat is the best
for watching content in your space.
Signage Dedicated Features
Dpm (Display power management)
From now on, you can configure the DPM (Display Power
Management) function by setting the function to on. When
there is no signal, the TVs enters to DPM mode to manage
power efficiently.
Compatibility with AV Control system*
The LG UV340C series is compatible with AV control system,
with which users can easily manage, monitor and control LG
commercial displays from one location.
* Available AV control systems may differ by regions.
Features
WOL (Wake on LAN)
WOL (Wake on LAN) helps you remotely turn on TVs over the
internet. Connect TVs and a PC in the same network, and send
Magic Packet program to the MAC addresses of registered TVs.
Then, it will wake up the TVs via LAN port.
Public Display Mode
From channel selection to volume level, you can control the
TV settings in business areas. Public Display Mode also
enables you to restore default settings, as required, on the
TVs.
SNMP
SNMP (Simple Network Management Protocol) ensures convenient
network management for SI and business managers.
Self Diagnostics via USB
Enables service engineers to analyze the data and identify
technical issues quickly and easily through a USB memory
device.
RS-232C Control
Via the TV's RS-232C port, you can remotely control power
and volume settings simultaneously.
USB Cloning
Clone all Public Display with astonishing speed and ease.
The USB Cloning feature allows you to simply copy the TV
settings to all TVs using a USB memory device.
Specifications:
75UV340C Specifications | |
---|---|
Display | |
Screen Size | 75" |
Diagonal Size | 74.6" |
Type | Edge LED |
Resolution | 3,840 x 2,160 (4K UHD) |
Brightness | 400cd/m2 |
Dynamic Contrast Ratio | 1,000,000:1 |
Static (Panel) Contrast Ratio | 1,200: 1 |
Viewing Angle (H x V) | 178° / 178° |
Response Time (G to G, ms) | 8 |
Frame Rate | T120 |
Broadcasting System | |
Analog | NTSC |
Digital | ATSC / VSB / Clear QAM |
Video | |
XD Engine | Yes |
Real Cinema 24p (3:3 Pull down) | Yes |
Aspect Ratio | 6 modes (16:9, Original, 4:3, Vertical Zoom, All-Direction Zoom, Just Scan) |
Audio | |
Audio Output | 10W + 10W |
Speaker System | 2.0 ch |
Sound Mode | 6 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game) |
Clear Voice | Yes |
General Features | |
Installation | USB Cloning |
Management | WOL, SNMP, Self Diagnostics via USB, Multi IR Code, HTNG/HDMI-CEC* *HDMI-CEC : Compatibility can differ by equipment. |
USB | Moving Picture Playback (.asf, .wmv, .avi, .mp4, .m4v, .mov, .3gp, .3g2, .mkv, .mpg, .mpeg, .dat, etc.), Picture (jpeg, jpg, jpe, BMP, PNG), Audio Codec (.mp3, .wav, .OGG, .WMA, .flac) |
Setting Option | Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care |
Hospitality Features | |
Hospitality Features | PDM (Public Display Mode), Lock Mode, Welcome Screen (Splash Image) / Video, Insert Image, External Speaker Out, RJP Compatibility, Crestron Connected Certification, DPM (Display Power Management) mode, Time Scheduler |
Interface | |
Set Side | HDMI In (2), USB 2.0 |
Set Rear | RF In, AV In (Sharing with Component In), Component In + Video, Optical Digital Audio Out, HDMI In, RS-232C In, RJ45 (SNMP), External Speaker Out |
Dimension | |
Bezel Width (L / R, U, B) : on bezel based (mm) | 14.7, 14.7, 14.7 |
Bezel Width (L / R, U, B) : off bezel based (mm) | 12.7, 12.7, 12.7 |
Vesa (mm) | 600 x 400 |
W x H x D / weight (with stand) | 66.8" x 38.6" x 1.5" / 91.1lb |
W x H x D / weight (without stand) | 66.8" x 41.4" x 11.7" / 92.6lb |
W x H x D / weight (Packing) | 72.4" x 46.0" x 9.1" / 116.8lb |
Power | |
Voltage, Hz | 100 ~ 240V, 50/60Hz |
Typical (Watts) | 86.8 |
Stand-by (Watts) | < 0.5 |
Standard Approval | |
Safety | UL |
Environment | FCC |
Etc. | RoHS, UL, NOM, ENERGY STAR Qualified |
* Specifications are subject to change without notice, so please reach LG salesteam to ensure before order.
Documentation:
Download the LG UHD Commercial TV with Essential Smart Function - UV340C Series Datasheet (.PDF)
