LG 55VX1D
55" High Brightness Video Wall
LG 55VX1D 55" High Brightness Video Wall
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
Video walls have been applied in various locations to attract passersby and deliver advertisements, but the effect can sometimes be hampered due to natural light or bright indoor lighting conditions. The LG VXID delivers extremely clear images with color that remains vivid, even in very bright environments, and an immersive viewing screen with an ultra narrow bezel.
- Size: 55"
- Brightness(Typ.): 1,500 cd/m²
- Bezel: 2.25 mm (Top/Left), 1.25 mm (Bottom/Right)
- Depth: 92.8mm
- Interface: HDMI, DP, DVI-D, RGB, RS232C, RJ45, USB 3.0, IR Receiver, Audio
- webOS 3.0+
Features:
High Brightness & Narrow Bezel
Clear and Vivid Screen
Other video walls are unable to sufficiently display content
due to low visibility under bright lighting. LG's new high
brightness video wall stands out against such backgrounds,
with a high luminance of 1,500 cd/m2. It delivers
advertisements clearly under the brightest lights.
Ultra Narrow Bezel
The 3.5mm ultra narrow bezel size creates immersive and
seamless viewing experiences on assembled video wall
screens.
Superior Picture Quality
Clear Viewing Angle
Stable image reproduction is critical in video walls, as it is
usually installed in places above eye level and is seen from
various angles. Thanks to the IPS panel and the high half
luminance angle, VX1D delivers the best picture quality from any
viewer position.
Uniform Brightness
LG’s LED backlight technology guarantees high
uniformity in brightness to ensure a clear picture. On other
screens, certain spots may appear darker than others, but
the new VX1D generates high visibility and a consistent
brightness across the whole screen.
Consistent White Balance
Through Video Wall Image Creation (VIC) technology, color
and brightness differences are compensated in circuit part
with an algorithm to make the panels into a same
characteristic so that each video wall maintains the
consistent white balance.

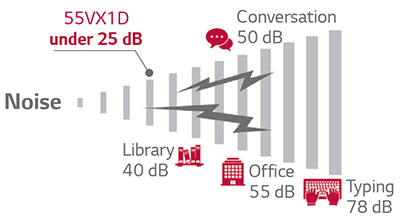

Quiet Operation
Fan-Less Noise Reduction
55VX1D is the perfect choice for an in-window environment
due to its efficient design not requiring a cooling fan. Its
operating noise level is under 25 dB, which is quieter than
a typical recording studio (30 dB).
Smart Platform
Built-in SoC and Synced Playback
The optimized built-in quad-core System-on-Chip (SoC)
technology in the 55VX1D can play various content formats
and eliminates the need for an external media player. Using
its built-in SoC, each display plays its video tile without
lag which ensures synchronized content playback.
Enhanced Usability
Convenient UX for Video Wall
The color temperature of the screen can be easily adjusted by
users with a remote control (depends on the input content). Also,
the settings for tile mode and content playback have a dedicated
menu for ease of use.
Easy Management with LAN Daisy Chain
All the panels in the Video Wall are linked together via Local
Area Network (LAN). This LAN daisy chain allows users to control
and monitor the signage, distribute content, and even update
firmware.
Specifications:
| 55VX1D Specifications | |
|---|---|
| Panel | |
| Screen Size | 55" |
| Panel Technology | IPS |
| Aspect Ratio | 16 : 9 |
| Native Resolution | 1920 x 1080 (FHD) |
| Brightness | 1,500 cd/m2 |
| Contrast Ratio | 1,300:1 |
| Dynamic CR | 500,000:1 |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | 8ms (G to G) |
| Surface Treatment | Hard Coating (2H), Anti-glare Treatment of the Front Polarizer (Haze 3% Typ.) |
| Guaranteed Operating Hour | 24 Hours |
| Orientation | Portrait & Landscape |
| Connectivity | |
| Input | HDMI, DP, DVI-D, RGB, Audio In, USB 3.0 |
| Output | DP, Audio Out |
| External Control | RS232C In/out, RJ45 In/out, IR Receiver In |
| Physical Specification | |
| Bezel Color | Black |
| Bezel Width | 2.25 mm (L/T) / 1.25 mm (R/B) |
| Monitor Dimension (W x H x D) | 47.8" x 26.9" x 3.7" / 1,213.4 x 684.2 x 92.8 mm |
| Weight (Head) | 51.8 lbs / 23.5 kg |
| Carton Dimensions (W x H x D) | 53.3" x 33.7" x 10.4" / 1,353 x 855 x 263 mm |
| Packed Weight | 80.7 lbs / 36.6 kg |
| VESA Standard Mount Interface | 600 x 400 mm |
| Special Features | |
| Special Features | Temperature Sensor, Tile Mode (Up to 15 x 15), Natural Mode @Tile Mode, ISM Method, DPM Select, Energy Saving, Smart Energy Saving, File Play with USB, Internal memory (8GB, System 4GB + Available 4GB), USB Cloning, Contents Scheduling, Fail Over, Media Share |
| Environmental Conditions | |
| Operating Temperature Range | 32 °F to 104 °F |
| Operating Humidity Range | 10 % to 80 % |
| Power | |
| Power Supply | 100-240V~, 50/60Hz |
| Power Type | Built-In Power |
| Power Consumption - Typ. / Max | 250 W / 280 W |
| Power Consumption - Smart Enegy Saving | 213 W |
| Standard (Certification) | |
| Safety | UL / cUL / CB / TUV / KC |
| EMC | FCC Class "A" / CE / KCC |
| ErP / Energy Star | NA / Yes (Energy Star 7.0) |
| Media Player Compatibility | |
| OPS Type Compatible | - |
| External Media Player Attachable | Yes (MP500/MP700) |
| Software Compatibility | |
| Content Management Software | SuperSign Premium |
| Accessory | |
| Basic | Remote Controller, Power Cable, DP Cable, Manual, IR Receiver, RS-232C Cable, LAN Cable, Guide Bracket, Screws |
| Optional | Wall mount (Landscape: WM-L640V, Portrait: WM-P640V) |
| Warranty | |
| Warranty | 3-Year Limited Warranty (Parts and Labor) | Extended Warranties Available |
Views:
Documentation:
Download the LG High Brightness Video Wall - 55VX1D Datasheet (.PDF)
