LG 49XE4F
49" XE4F Series High Brightness Outdoor Displays
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
With a slim & robust design, XE4F series can be easily installed to meet the customer's needs under in external environments that require complex installation conditions.
And upgraded brightness captures the customer's attention even under strong and direct sunlight.
- Size: 49"
- Brightness(Typ.) : 4,000 cd/m²
- Bezel : 38.4 mm (T/B), 26.0 mm (L/R)
- Interface : HDMI/ DP/HDBaseT/USB/ Audio/ RS232C/ RJ45
- Anti-Reflection Coating
- IP56 Design, IK10 Protective Glass
Features:
SLIM & ROBUST DESIGN FOR EASIER CUSTOMIZATION
Slim & Light Design
XE4F series composed of single display with a light and slim design and it can be easily customized to suit various external environments with no need for separate casing.
Easy Integration & Customizable
The XE4F-B series outdoor displays are ready to be customized to meet your business needs. From outdoor menu boards to kiosks, the XE4F-B series signage are mount ready and optimized for customers, based on your industry and use.
OUTSTANDING VISIBILITY
Bright & Brilliant
The XE4F series possess powerful brightness of 4,000nits, providing clear and vivid picture quality even under direct sunlight.
Wide Viewing Angle
IPS technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.
Long Lasting Brightness
By adding more LED units, XE4F operates brighter at a lower temperature, thereby lasting longer than conventional products.
Visible with Polarized Sunglasses
QWP (Quarter Wave Plate) enables clear visibility even when the viewer is wearing polarized sunglasses
RELIABILITY FOR OUTDOOR USAGE
Secured Protection with IP56 Design
The display is sealed with IP56 design for reliable operation. It's designed to be not only waterproof but also weatherproof against the damaging effects of the sun, rain, snow, dust and wind, an essential feature for outdoor application.

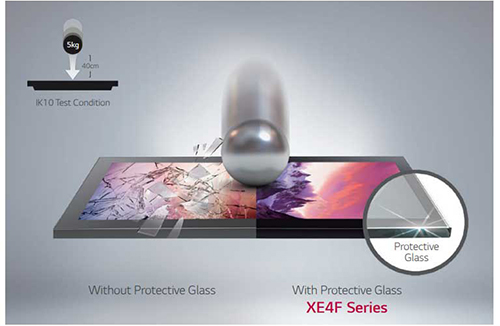

Protective Glass (IK10 Certified)
The tempered and laminated front glass ensures optimum protection from outdoor extremities, resulting in minimal to no damage from external impacts.
EASY MAINTENANCE
Support HDBaseT™
XE4F Series support HDBaseT™, the global standard for the transmission of ultra-high definition video & audio, Ethernet, controls, USB and IR over a single, long-distance cable, for easier control of the display and saving installaiton and maintenance costs.
Web Monitoring
This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.
Specifications:
| 49XE4F Specifications | |
|---|---|
| Panel | |
| Screen Size | 49" |
| Panel Technology | IPS, M+(WRGB) |
| Aspect Ratio | 16 : 9 |
| Native Resolution | 1,920 x 1,080 (FHD, WRGB) |
| Brightness | 4,000 cd/m² (Typ.), 3,200 cd/m² (Min.) |
| Contrast Ratio | 1,300:1 |
| Dynamic CR | 500,000:1 |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | Typ. 8ms (G to G BW) |
| Surface Treatment | Haze 3%, QWP |
| Life Time (Typ.) | 50,000 Hours |
| Operation Hours | 24 Hours |
| Orientation | Portrait & Landscape |
| Connectivity | |
| Input | HDMI(2), DP, HDBaseT, USB(2) |
| Output | External Speaker Out(L/R) |
| External Control | RS232C In/Out, RJ45(LAN) In/Out |
| Physical Specification | |
| Protection Glass | 5mm(IK 10, Degree of Protection, Tempered,Anti-Reflective) |
| Bezel Color | Black |
| Bezel Width | 38.4mm(T/B), 26.0mm(L/R) |
| Monitor Dimension (W x H x D) | 656.2 x 1153x 88.0mm |
| Weight (Head) | 32kg (TBD) |
| Packing Dimensions (W x H x D) | 1,286 x 797 x 207mm |
| Packed Weight | 37Kg (TBD) |
| Handle | No |
| Key Features | |
| Special Features |
webOS4.0 Platform, Internal Memory(16G, System 4GB+ Available
12GB) Temperature Sensor, Auto Brightness sensor, BLU Sensor, Pixel sensor, Gyro Sensor, Humidity Sensor Outdoor API control, HDbaseT, WOL, webRTC, Control Manager, DPM, Smart Energy Saving |
| Environmental Conditions | |
| Operating Temperature Range | -30°C to 50 °C |
| Operating Humidity Range | 5 % to 100 % |
| Power | |
| Power Supply | 100-240V~, 50/60Hz |
| Power Type | Built-In Power |
| Power Consumption - Typ/Max.. | 290/370W |
| Power Consumption - Smart Enegy Saving | 170W |
| Standard (Certification) | |
| Safety | IEC 60950-1 / EN 60950-1 / UL 60950-1 |
| EMC | FCC Class "A" / CE / KCC |
| ErP / Energy Star | ErP "C" /NA |
| Software Compatibility | |
| SuperSign | Yes(CMS, Control) |
| Signage365Care | Yes |
| Accessory | |
| Basic | Remote Controller, Manual(EIG, IG , OM), Regulation Book, Phone to RS232C Gender, HDMI Cable , POWER CABLE, Battery |
Views:
Documentation:
Download the LG High Brightness Outdoor Displays - XE4F Series Datasheet (.PDF)
