LG 49VM5C
49" Ultra-Narrow Bezel Video Wall
Sorry, this product is no longer available, Please contact us for a replacement.
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
Impressive Engagement and Overwhelming Attraction
With their slim bezels and virtually borderless designs, the 55VH7B, 55VM5B and 49VM5C video walls offer maximum immersion. Their quad-core SoC system plays various types of content without the need for an external media player, with easy and efficient management tools. These video walls have been designed to raise engagement in areas such as museums, airports, galleries and large retail spaces.
- Size: 49"
- Brightness(Typ.): 500 cd/m²
- Bezel : 0.9mm (T/B/L/R even bezel)
- Depth : 86.2 mm
- Interface : HDMI, DVI, RGB, IR, Daisy-chain (DP, RS232C, RJ45)
Features:
Borderless Design
Ultra-Narrow Bezel
The borderless design with its 0.9 mm even panel bezel* and 1.8 mm
BtB (Bezel to Bezel)** size, verified by Nemko***, enables an
immersive and virtually seamless viewing experience on assembled
video walls.
*Panel Bezel: The black matrix section where an image is not
displayed on the front panel.
**BtB (Bezel to Bezel): Panel Bezel + Panel Bezel (Borderless
type, no metal bezel)
***Nemko (Nogerois Elektriske Materiellkontroll) was established
in 1933 as an institution for mandatory safety testing and
national approval of electrical equipment to be marketed and sold
in Norway. Since it was transformed into independent, self-owned
foundation in 1991, it has provided worldwide testing and
certification.
Smart Platform
Built-in SoC* and Synced Playback
The optimized built-in quad-core SoC in the 55VH7B, 55VM5B
and 49VM5C can play various content formats and eliminates
the need for an external media player. Using its built-in
SoC, each display plays its video tile without lag for
synchronized content playback.

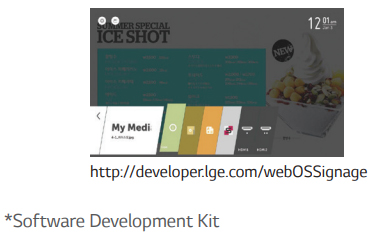

webOS
The webOS platform provides easy and convenient tools to
create contents. LG’s SDK* and technical supports make
content development and management easier.
Superior Picture Quality
Clear Viewing Angle
The 55VH7B, 55VM5B and 49VM5C ensure clear picture quality,
even when installed in arrays of more than four, ideal for
installations in large spaces.
Uniform Brightness
LG’s LED backlight technology provides high uniformity
in brightness to ensure a clear picture. On other screens,
certain spots may appear darker than others, but the new
55VH7B, 55VM5B and 49VM5C generate high visibility and a
consistent brightness across the whole screen.
Video Wall Image Creation Technology
Through Video Wall Image Creation (VIC) technology; color
and brightness differences are compensated for by an
algorithm within the circuitry that gives the panels the
same characteristics, enabling the video wall to maintain a
consistent white balance from panel-to-panel.
Image Gap Reduction
The 55VH7B, 55VM5B and 49VM5C include an image-improvement
algorithm that can adjust to images moving within the
boundaries of the bezels, enabling a seamless viewing
experience from screen-to-screen.
Enhanced Content Management
LAN Daisy Chain Performance
The LAN daisy chain allows you to execute commands to control and
monitor the screens, and even update their firmware.
Convenient Options
Guide Bracket / Classified Port
A guide bracket is an attachment that ensures the video wall
remains flat. The classified in/out port prevents errors
when connecting a daisy chain.
Control Buttons
With 8 control buttons, it’s easy to operate various
functions of the 55VH7B, 55VM5B and 49VM5C, such as
controlling the OSD (On Screen Display) and changing the
input source.
Specifications:
| 49VM5C Specifications | |
|---|---|
| Panel | |
| Screen Size | 49" |
| Panel Technology | IPS |
| Aspect Ratio | 16 : 9 |
| Native Resolution | 1920 x 1080 (FHD) |
| Brightness | 500 cd/m2 |
| Contrast Ratio | 1,300:1 |
| Dynamic CR | 500,000:1 |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | 8ms (G to G) |
| Surface Treatment | Hard coating (3 H), Anti-glare treatment of the front polarizer (Haze 10 %) |
| Guaranteed Operating Hour | 24 Hours |
| Orientation | Portrait & Landscape |
| Connectivity | |
| Input | HDMI, DP, DVI-D, OPS, Audio, USB 2.0, USB 3.0, RGB |
| Output | DP, Audio |
| External Control | RS232C, RJ45, IR Receiver |
| Physical Specification | |
| Bezel Color | Black |
| Bezel Width | 0.9 mm (Top/Bottom/Left/Right even bezel) / 1.8 mm *B to B : Panel Bezel + Panel Bezel |
| Monitor Dimension (W x H x D) | 1,075.6 x 605.8 x 86.2 mm |
| Weight (Head) | 38.6 lbs |
| Carton Dimensions (W x H x D) | 1,214 x 775 x 263 mm |
| Packed Weight | 51.2 lbs |
| Special Features | |
| Special Features | Temperature Sensor, Tile Mode (up to 15 x 15), Natural Mode@Tile Mode, Energy Saving, Smart Energy Saving, File Play with USB, Internal Memory (8 GB, System 4 GB + Available 4 GB), Wi-Fi Dongle Ready, USB Cloning, Content Scheduling, Fail over (USB, RGB, DVI, HDMI, Internal Memory) |
| Environmental Conditions | |
| Operating Temperature Range | 32 °F to 104 °F |
| Operating Humidity Range | 10 % to 80 % |
| Power | |
| Power Supply | 100-240V~, 50/60Hz |
| Power Type | Built-In Power |
| Power Consumption - Typ. | 120W |
| Power Consumption - Smart Enegy Saving | 70 W |
| Standard (Certification) | |
| Safety | UL / cUL / CB / TUV / KC |
| EMC | FCC Class "A" / CE / KCC |
| ErP / Energy Star | NA / Yes (Energy Star 7.0) |
| Media Player Compatibility | |
| OPS Type Compatible | Yes |
| External Media Player Attachable | Yes (MP500/MP700) |
| Software Compatibility | |
| Content Management Software | SuperSign W/Lite |
| Control and Monitoring Software | SuperSign C |
| Accessory | |
| Basic | Remote controller, Power cable, DP cable, Manual, IR receiver, RS-232C cable, LAN cable, Guide bracket, Screws |
| Optional | Wall mount (Landscape: WM-L640V, Portrait: WM-P640V), OPS kit (KT-OPSA), HDBaseT (EB-B100) |
| Warranty | |
| Warranty | 3-Year Limited Warranty (Parts and Labor) | Extended Warranties Available |
Views:
Documentation:
Download the LG Ultra-Narrow Bezel Video Wall - VH & VM Series Datasheet (.PDF)
