LG 32HL710S
32" 4K IPS Surgical Monitor
LG 27HJ713S 32" 4K IPS Surgical Monitor
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
Large Display for Surgical Precision
LG 4K surgical high-resolution monitor with LG's innovative technology provides accuracy, user convenience and reliability for precise surgery.
- 31.5 (80.01cm) 4K (3840x2160) IPS
- Support HDR10
- Mirror & Rotation Mode
- Up to 4PBP, PIP
- Dustproof, Water Resistant
- Protection Glass
Features:
31.5 (80.01cm) 4K IPS
Enhanced Accuracy with Wide View
With 31.5 (80.01cm) 4K IPS display, the LG surgical monitor
provides visual comfort for viewing accurate images with others
from any angle. So it reduces the risk of misperception and helps
to produce better outcomes.

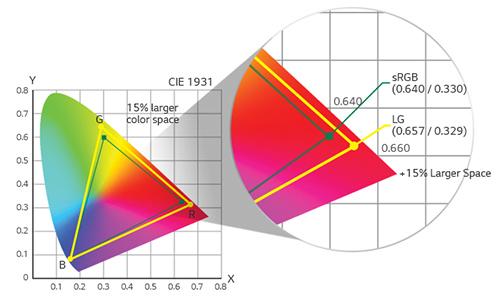

sRGB 115% (Area), Over 99% (Coverage)
The 32HL710S, supports sRGB 115% (Area) and Over 99% (Coverage) with the standard DICOM Part 14, is designed for accurate color recognition and depth perception during invasive surgery. It enables surgeons to view accurate, realistic images and allow precise surgery.
Brightness Stabilization
LG surgical monitor with Brightness Stabilization can maintain constant brightness. Its sensor carefully measures the backlight and local lighting conditions. Then it optimizes the correct brightness for the surgical procedure.
Support HDR10
LG surgical monitor is designed to fits with HDR-supported medical devices such as endoscope cameras. It can deliver images from devices vividly without crushing blacks in dark areas.

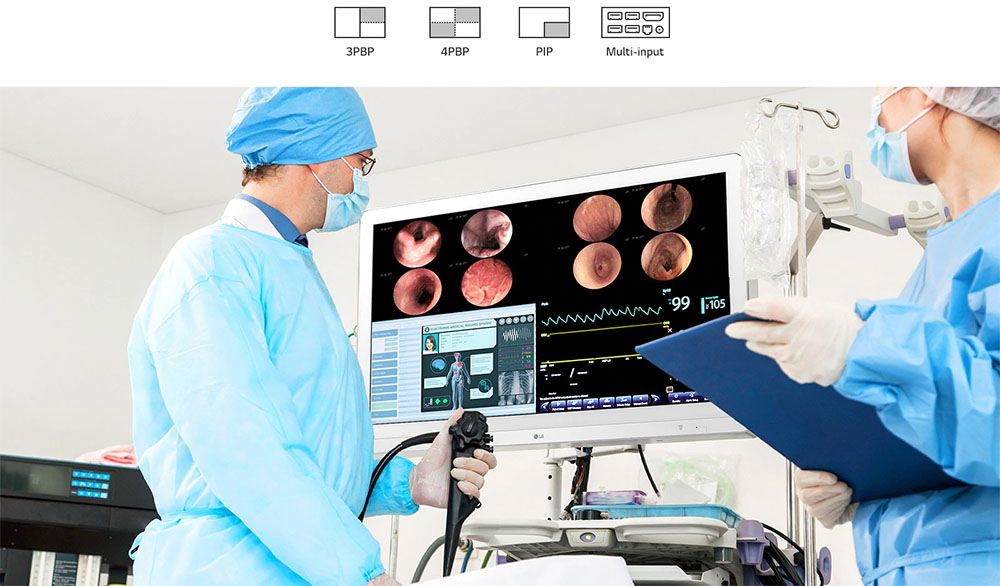

PBP, PIP & Multi-input
Multiple Signals on One Screen
The 32HL710S supports up to 4PBP, PIP and extended ports, allowing
you to see multiple signals from several devices on one screen.
You can set a combination screen of the endoscopic video from
endoscopic camera, the vital sign imagery and the fluoroscopic
imagery.
Find the Perfect Operating View
The 32HL710S with Mirror & Rotate functions, helps you to set the perfectly optimized operating view for improving your convenience in the operating room. You can select the 180 degrees rotated image or the mirror image you want to see.
Dustproof & Water Resistant
To ensure protection against contact with objects such as blood or bodily fluids, LG surgical monitors are cleanable and durable, with ratings of IP35 on the front and IP32 on the body except for front, securing them from any direction.
Specifications:
| 32HL710S Specifications | |
|---|---|
| Panel | |
| Type | IPS + Glass |
| Size | 32 |
| Native Resolution | 3840 x 2160 |
| Pixel Pitch | 0.18159(H)mm x 0.18159(V)mm |
| Aspect Ratio | 16:9 |
| Color Gamut (Typ.) |
sRGB 115% (Area), Over 99% (Coverage) |
| Viewing Angle | 178(R/L), 178(U/D) |
| Brightness | 800cd/m2 (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) |
| Peak Brightness | 800 (Typ.) |
| Surface Treatment | Protection Glass (1.6t, AR, AF) |
| Response Time (GTG) | 14ms (Off), 5ms (Faster) |
| Features | |
| Auto Luminance sensor | Yes |
| Factory Calibration | Yes (Delta E<5, Gamma 1.8~2.6/DICOM curve) |
| Color Temperature |
6500K/7500K/9300K Manual (5000K ~ 10000K) |
| HDR 10 | Yes |
| HW Calibration | Yes (True color pro) |
| PBP | Yes (2PBP/3PBP/4PBP) |
| Picture Mode | (SDR) Custom, Mono, Vivid, HDR Effect, DICOM, Calibration 1, Calibration 2, (HDR) Custom, Vivid, Standard |
| Smart Energy Saving | Yes |
| Uniformity | Yes |
| Black Stabilizer | Yes |
| DICOM | Yes (<=10%) |
| Flicker safe | Yes |
| HDR Effect | Yes |
| OSD Language | 17 Languages |
| PIP | Yes |
| Screen Flip | Yes |
| Super Resolution+ | Yes |
| Software Application | |
| True Color Pro | Yes |
| Connectivity | |
| 3G-SDI | Yes (3G,IN x 1/OUT x 1) |
| DVI | Yes (1In / 1Out) |
| HDMI | Yes (1ea) |
| RS-232 | Yes |
| USB Upstream Port | Yes (1ea/ver2.0) |
| DP Version | 1.2 |
| DisplayPort | Yes (in 1ea/out 1ea) |
| HDMI Version | 2.0 |
| USB Downstream Port | Yes (1ea/ver2.0) |
| Power | |
| AC Input | 100-240Vac, 50/60Hz |
| Power Consumption (DC Off) | Less than 0.3W |
| Type | External Power (Adapter) |
| DC Output | 19-24V, 6.32A-5.0A (24V Ready) |
| Power Consumption (Max.) | 120W |
| Control Key | |
| Key Number (Power Key Included) | 10 |
| Key Type | Dome Tact |
| LED Color(On mode) | Green |
| Key LED Color | White (5/10/20sec,Always) |
| [ Key Location ] | Front |
| Mechanical | |
| Wall Mountable | 200 x 100 mm & 100 x 100 mm |
| Dimensions/Weight | |
| Dimension in Shiping (W x H x D) | 883 x 599 x 200 mm |
| Dimension without Stand (W x H x D) | 764.6 x 480.8 x 94.4 mm |
| Pallet Stuffing (20ft/40ft/40ft HC) | 216EA/405EA/495EA |
| Weight without Stand | 12.2 kg |
| Weight in Shipping | 17.2 kg |
| Standard | |
| IEC (IEC 60601-1/IEC 60601-1-2) | Yes |
| EN (EN 60601-1/EN 60601-1-2) | Yes |
| cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1) | Yes |
| FCC (FCC part 15 Class A) | Yes |
| FDA | Registration (Class I) |
| CE (MDD 93/42/EEC, 2007/47/EC) | Yes |
| ISO13485 | Yes |
| GMP | Yes |
| KGMP | Yes |
| RoHS | Yes |
| REACH | Yes |
| WEEE | Yes |
| MFDS | Yes |
| IP (front/except for front) | IP35/IP32 |
| Vandal-proof | IK06 |
| Accessories | |
| Adapter | Yes |
| Calibration Report (Paper) | Yes |
| Display Port | Yes |
| HDM | Yes |
| Power Cord | Yes |
| Warranty | |
| Warranty | 3-Year Limited Warranty (Parts and Labor) |
